TOOL-RAILWAY-AGGREGATE-2 and TOOL-RAILWAY-AGGREGATE-2-DIGI
TOOL-RAILWAY-AGGREGATE-2 and TOOL-RAILWAY-AGGREGATE-2-DIGI

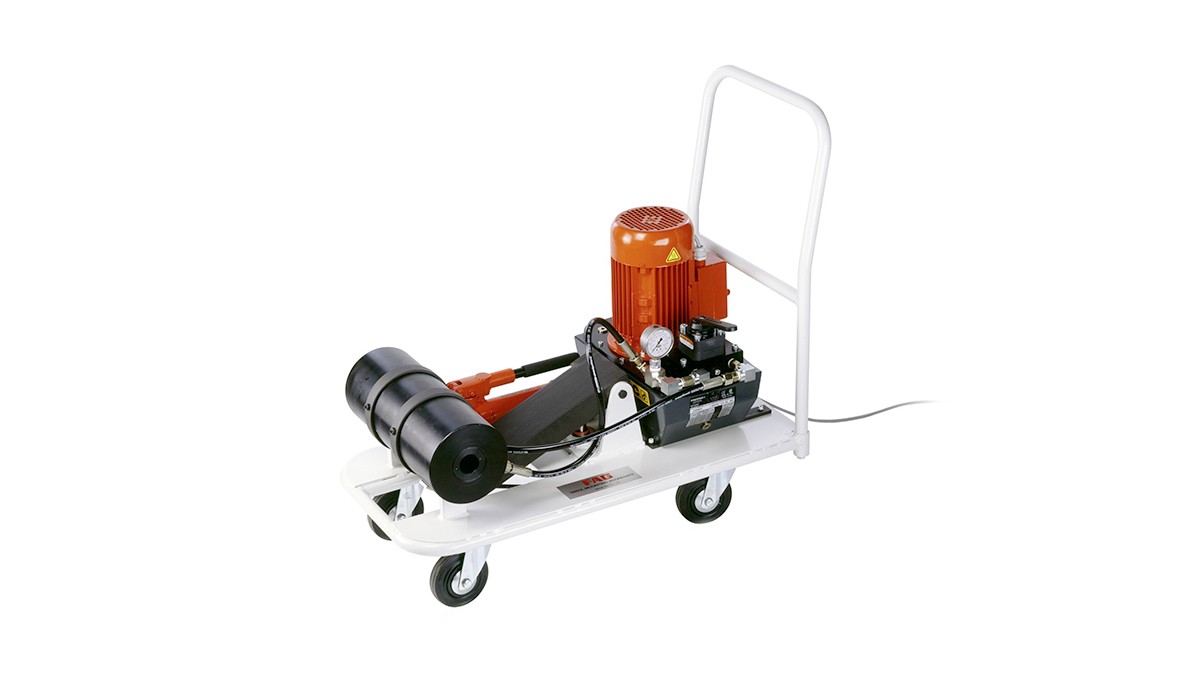

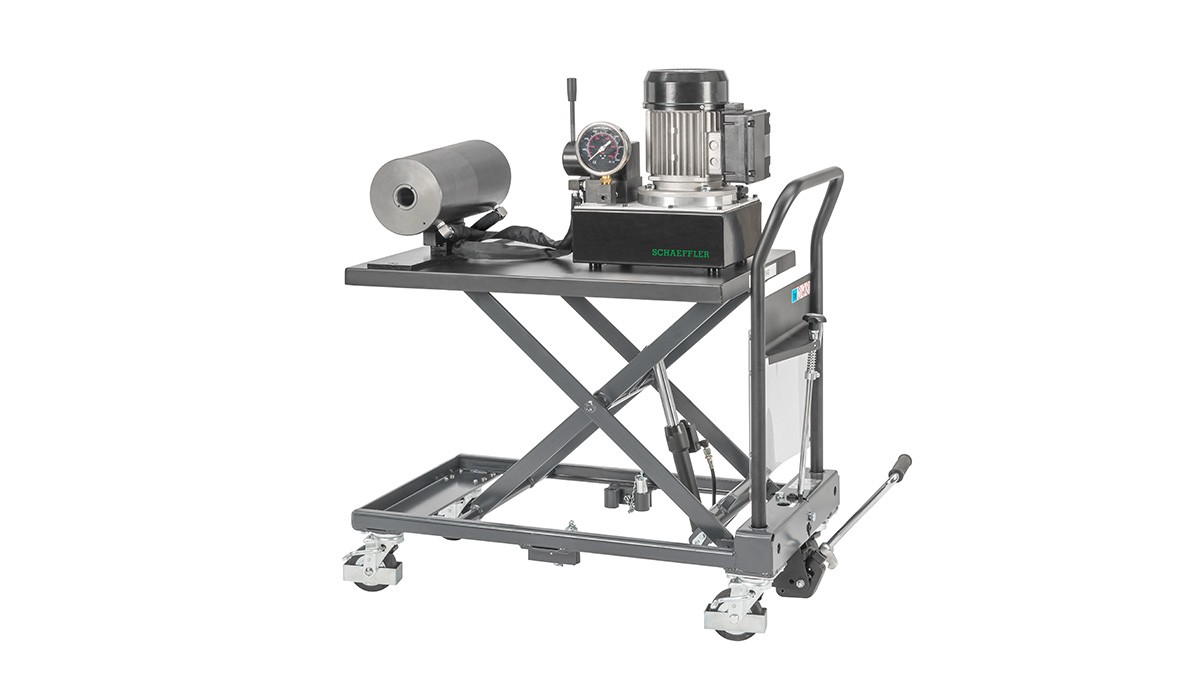

Mobile hydraulic unit for axlebox bearing mounting on rail vehicles

Your benefit:

  • Improved ergonomics
  • Precise positioning
  • Available in two versions:
    • Standard version
    • Version with force-travel measurement and data storage for installation documentation
  • The standard version allows a cost saving of 30% to be achieved

Publications with further information

Contact

Comprehensive reasons to use TOOL-RAILWAY-AGGREGATE-2

Improved ergonomics

Easy and precise height adjustment via foot pedal (upwards) and hand lever (downwards); the operating cylinder and unit are arranged on one level, thus ensuring simple and ergonomic operation

More efficiency

Significantly lower purchasing costs thanks to optimized design and manufacture

Enhanced quality assurance

With the digital version, TOOL-RAILWAY-AGGREGATE-2-DIGI, the piston stroke length/displacement, the force required for pushing the bearing onto the shaft journal, and the contact force are measured and recorded. The complete documentation fulfills higher requirements in terms of quality management.

Features

  • Mobile hydraulic unit
  • For use with application-specific tool sets
  • Mounting and dismounting of TAROL units (axlebox bearing units of rail vehicles)
  • Universally suitable for use with all TAROL sizes
  • Extended height adjustment range (440 mm – 990 mm)
  • Optionally available with a measuring device, data logger box, and USB interface
  • Standard version can be upgraded
